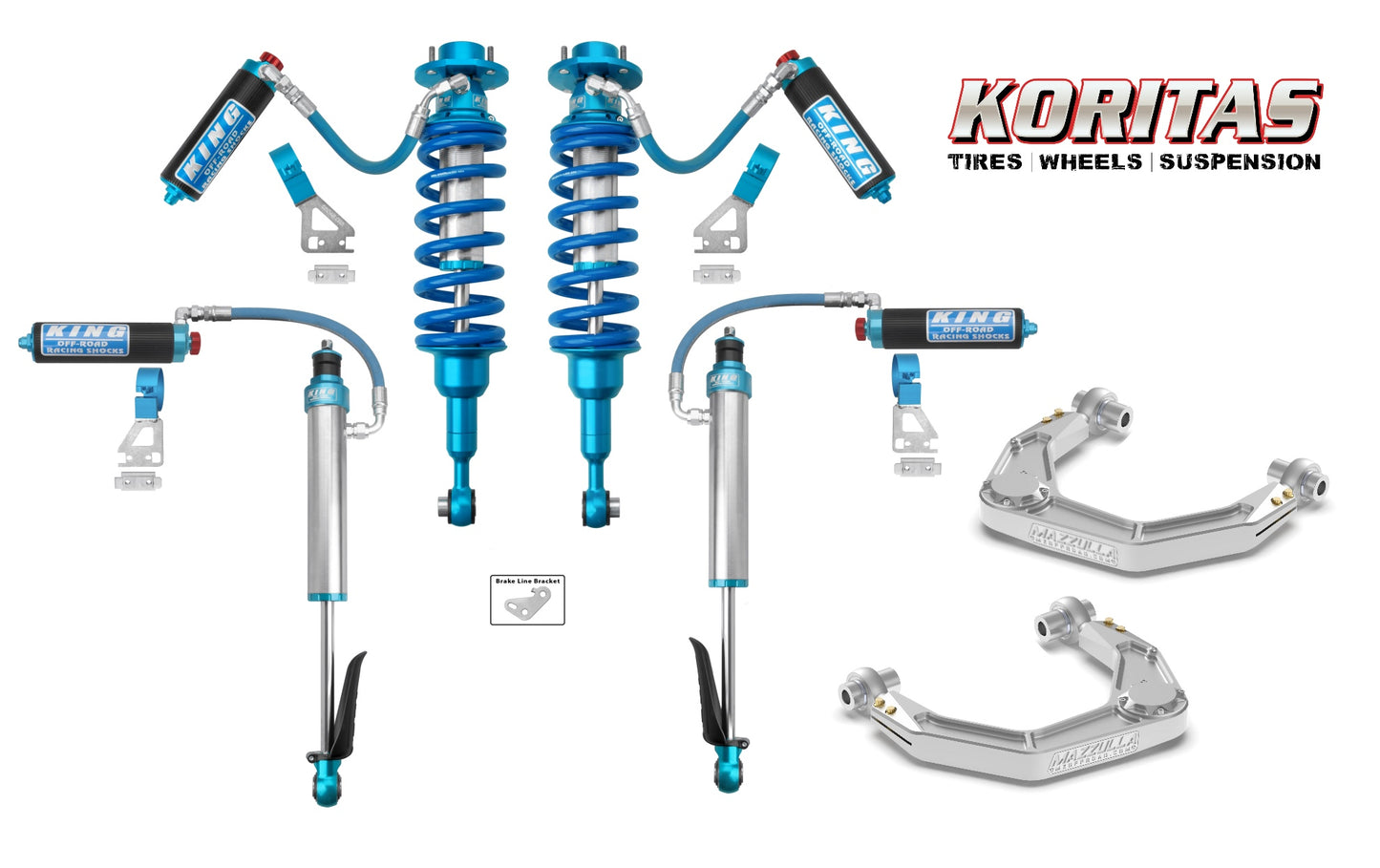

0-3" Lift Kit w/ King 2.5 Adjustable Shocks, and Mazzulla Billet Upper Control Arms For 2024+ Toyota Tacoma 2wd/4wd

Description

This King OEM performance kit, custom tuned for your Toyota Tacoma, delivers exceptional performance and ride quality. Each kit undergoes rigorous real-world testing to optimize damping curves and spring rates (when applicable) for your vehicle. Paired with these billet-machined uniball upper control arms, this setup enhances performance, strength, and durability. The upper control arms correct camber and caster geometry in lifted applications, ensuring factory alignment is maintained. When adding extended travel coilover shocks, the arms' large 1.25" uniball bearings provide additional clearance and increased strength, offering superior longevity. Crafted with heat-treated stainless steel heim joint spacers and uniball pins, these control arms maintain precise tolerances for maximum fitment and performance. Machined in low volume with USA materials, these components offer unmatched attention to detail. Together, the combination of the upper control arms and shock kit improves handling, boosts off-road strength, and provides 40% increased wheel travel, all while maintaining stock track width and suspension mounting locations. Perfect for high-performance off-roading, this setup ensures an easier installation, durability, and an enhanced driving experience.

Kit Features

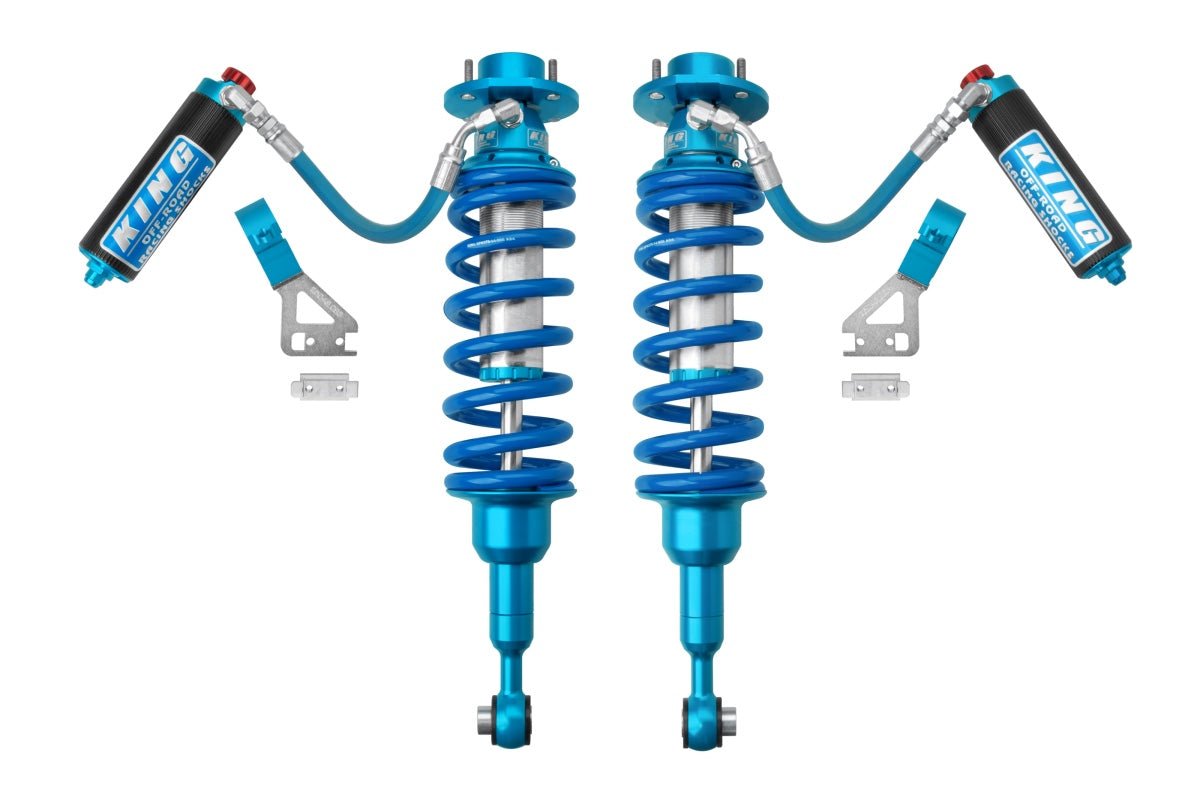

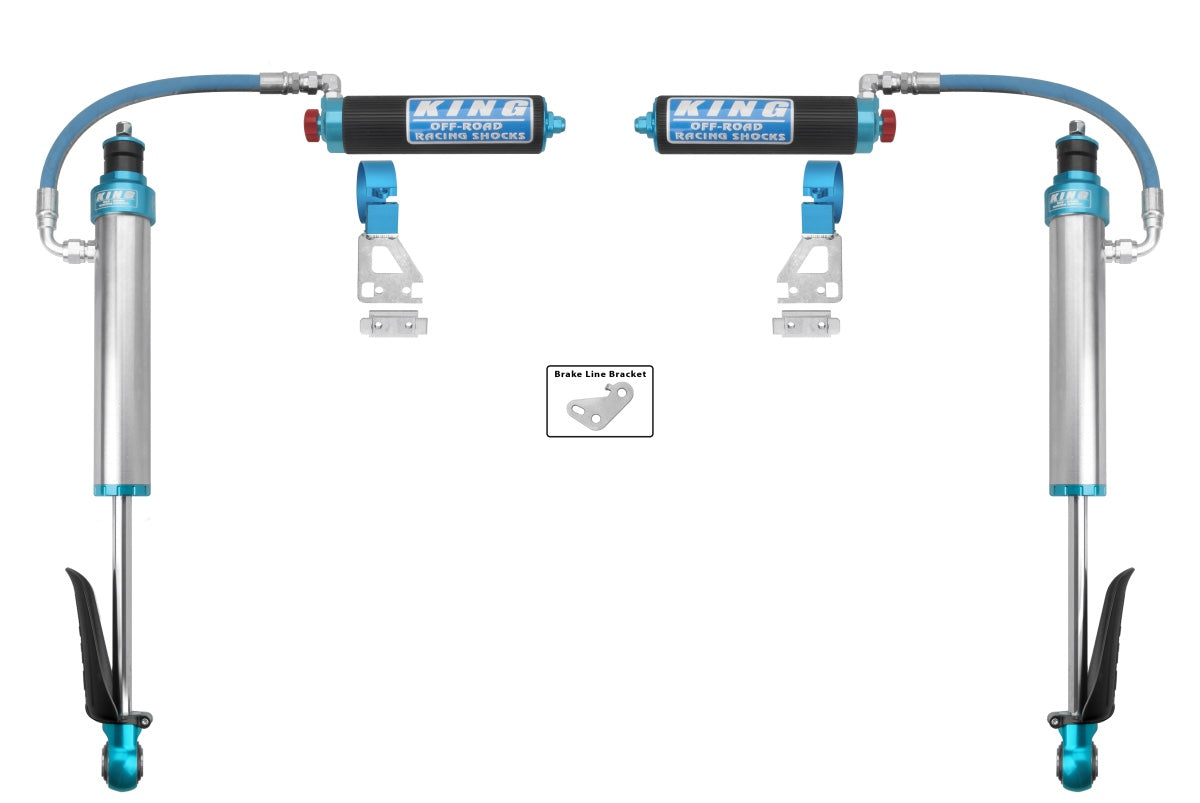

King 2.5 Reservoir Coilovers w/ Adjustors, and King 2.5 Rear Reservoir Shocks w/ Adjustors

• 100% bolt-on performance.
• Increased wheel travel!
• Adjustable ride height.
• Large 2.5” shock bodies increase fluid capacity for smoother, cooler running shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your Toyota.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Fully rebuildable, serviceable and tunable.
• External reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
• All new threaded end cap design with new Schrader valve protective cap.
• Made from extruded 6061-T6 aluminum.
• New improved reservoir mounts. No more hose clamps!
• Optional Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.

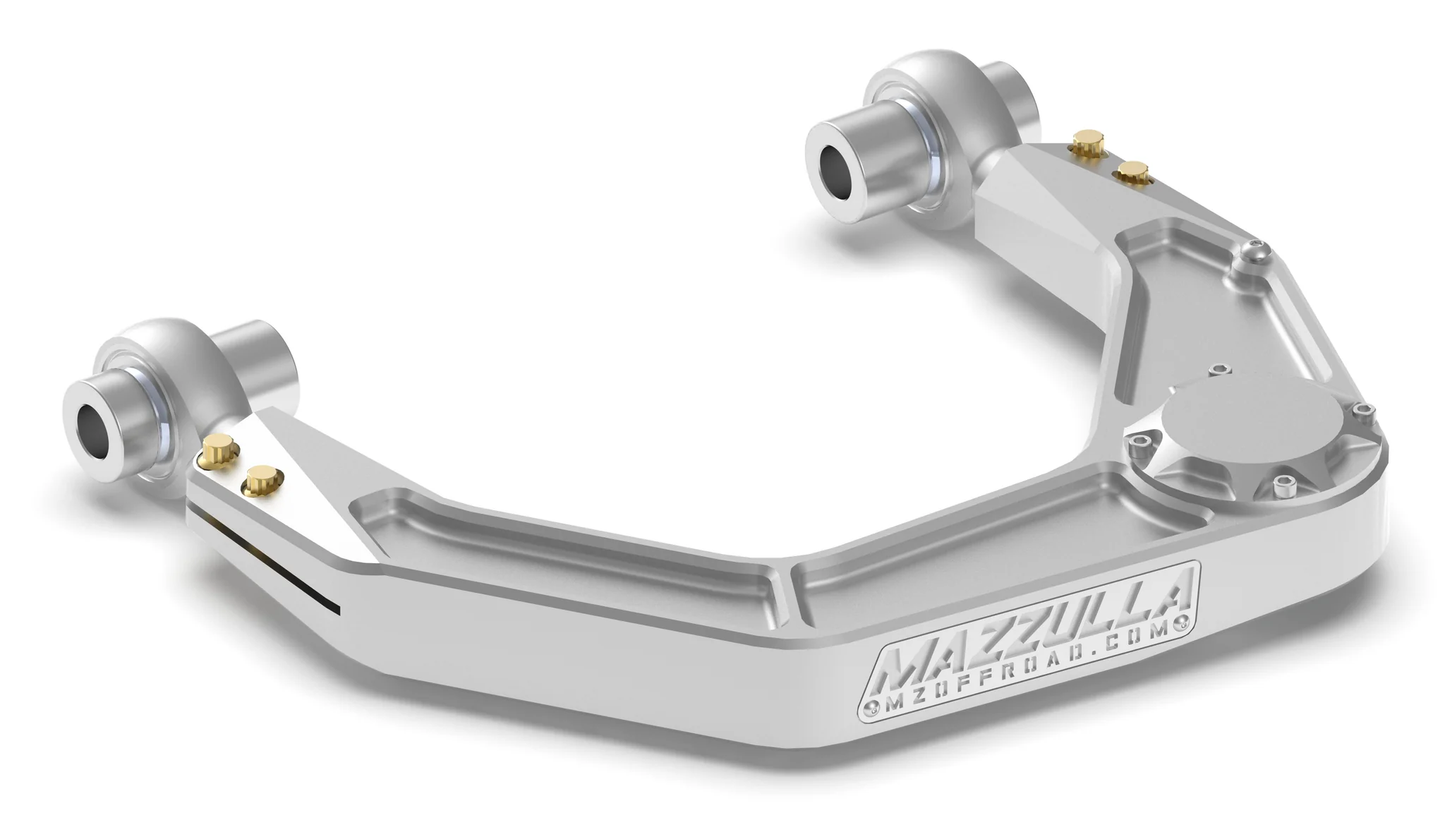

Mazzulla Billet Uni-ball Upper Control Arms

• CAD designed and engineered
• Manufactured in the USA
• Billet machined 6061 aluminum construction
• FK Teflon lined 1.250" uniballs
• FK Heim Joint inner pivots
• Stainless steel hardware
• Aircraft grade 12 point pin hardware
• 17-4 heat treated stainless steel pins and spacers
• O-ring sealed uniball cover
• Maximum alignment capability compared to stock
• Improved geometry for lifted applications
• Silver anodize finish

Application Notes:

• Can be used on 2wd and 4wd suspension
• Recommended wheel backspace is 4.75"
